How to size refrigerated air dryer?

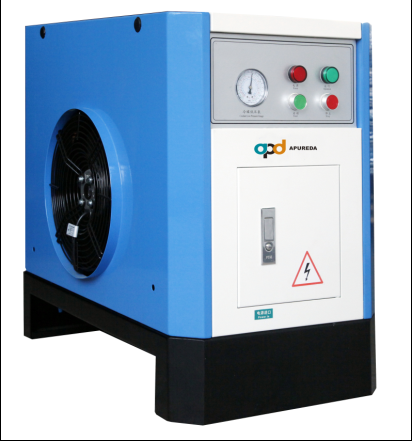

With different compressed air inlet temp., the Refrigerated Air Dryer is divided into Standard Air Dryer and High-Temp AirDryer. Then it's divided again into Air-cooled Dryer and Water-cooled Dryer according to diverse cooling styles.

To collect the suitable refrigerated air dryer,first have to confirm the Max. flow rate Nm3/min、Min. air inlet pressure MPa（g）、Max. air inlet temp.℃、Max. ambient temp.℃、Max. coolant water temp.℃,

and then check the following data to calcute the Actual Nominal Flow Rate.
