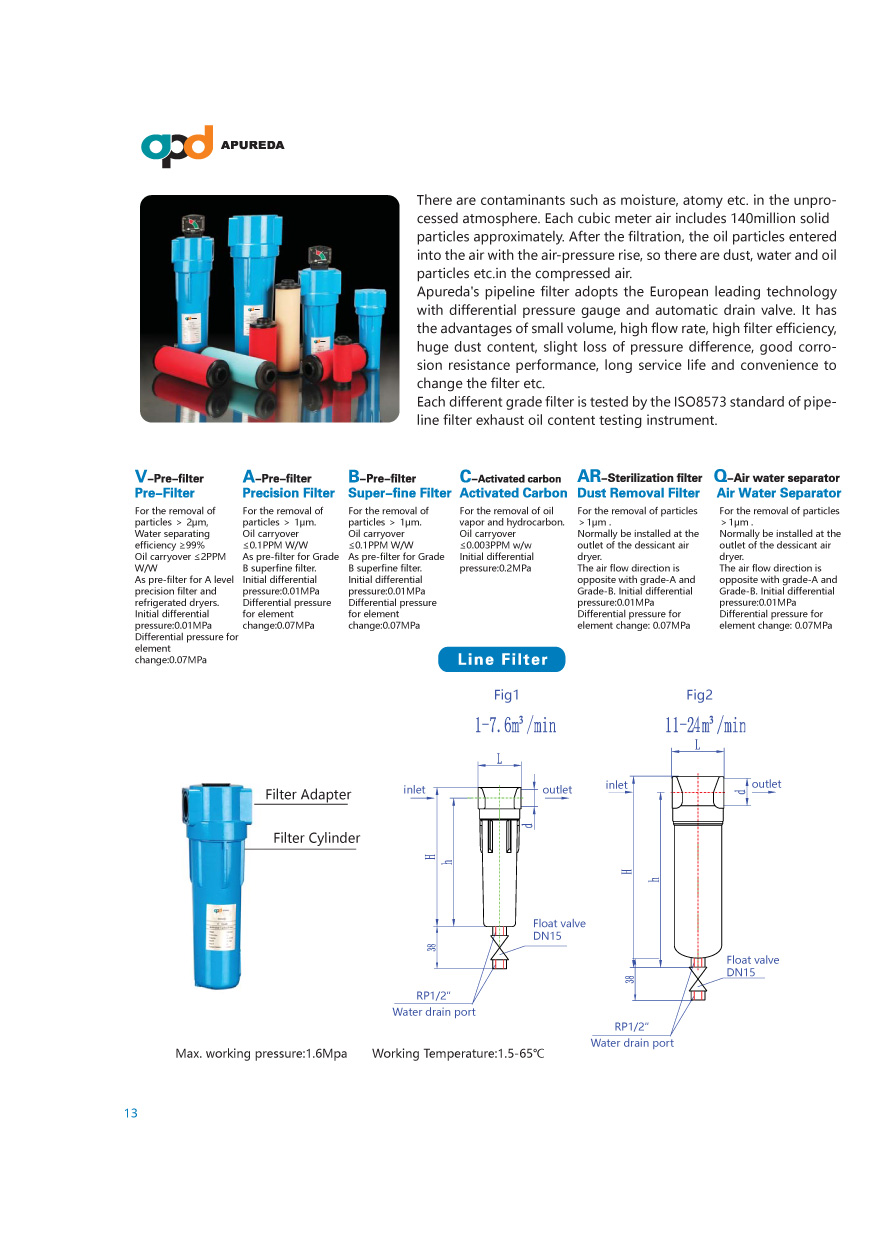

V-Pre-filter
For the removal of particles ＞ 2μm,
Water separating efficiency ≥99%
Oil carryover ≤2PPM W/W
As pre-filter for A level precision filter and refrigerated dryers.
Initial differential pressure:0.01MPa
Differential pressure for element change:0.07MPa
A-Pre-filter
For the removal of particles ＞ 1μm.
Oil carryover≤0.1PPM W/W
As pre-filter for Grade B superfine filter.
Initial differential pressure:0.01MPa
Differential pressure for element change:0.07MPa
B-Pre-filter
For the removal of particles ＞0.01μm.
Oil carryover≤0.01PPM W/W
As pre-filter for Grade B superfine filter.
Initial differential pressure:0.012MPa
Differential pressure for element change:0.07MPa
C-Activated carbon
For theremovalof oil vapor and hydrocarbon.
Oil carryover≤0.003PPM w/w
Initial differentialpressure:0.02MPa
AR-Sterilization filter
Dust removal filter
For the removal of particles＞1μm .
Normally be installed at the outlet of the dessicant air dryer.
The air flow direction is opposite with grade-A and Grade-B.
Initial differential pressure:0.01MPa
Differential pressure for element change: 0.07MPa
Q-Air water separator
For the removal of particles＞1μm .
Normally be installed at the outlet of the dessicant air dryer.
The air flow direction is opposite with grade-A and Grade-B.
Initial differential pressure:0.01MPa
Differential pressure for element change: 0.07MPa
